Residential Energy Storage

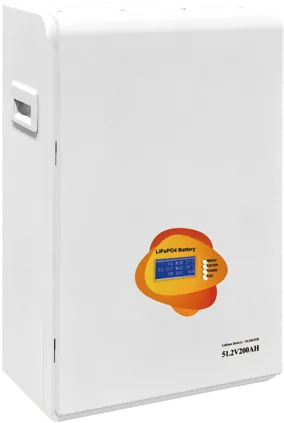

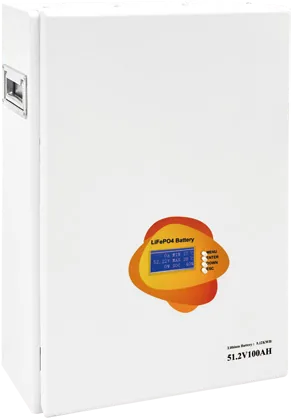

GS-W5 / GS-W10

Wall-Mounted LiFePO4 Home Batteries, 5 / 10 kWh

Models: GS-W5 · GS-W10

5.12 / 10.24 kWh

Overview

Slim wall-mounted 51.2 V LiFePO4 batteries with a smart BMS and LCD display. Up to six units can be connected in parallel, and RS485 / CAN communication allows integration with compatible hybrid inverters.

Key applications

• Home solar self-consumption
• Backup power during load-shedding
• Small shops and offices

Enquire about this product

Full technical specifications – GS-W5 / GS-W10

Technical specifications – GS-W5 / GS-W10

Model	GS-W5	GS-W10
Energy	5120 Wh	10240 Wh
Capacity	102 Ah	206 Ah
Cell configuration	1P16S
Voltage range	40 – 58.4 V
Max current	100 A	200 A
Cycle life	6000 @ ≥ 90% DoD; 10,000 @ ≥ 80% DoD
Parallel	Up to 6
Communication	RS485, CAN, RS232, Bluetooth (smart BMS)
Ingress protection	IP21
Dimensions	601.5 × 400 × 155 mm	651.5 × 445 × 235 mm
Weight	45.5 kg	116.1 kg

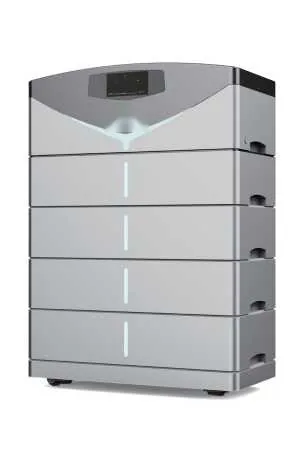

GS-S10 / GS-S15 / GS-S20

Stackable Home Batteries, 10 – 20 kWh

Models: GS-S10 · GS-S15 · GS-S20

10.24 – 20.48 kWh5 kW

Overview

A floor-standing stackable battery made of 5.12 kWh modules (51.2 V / 100 Ah) under a control unit with touch screen. Two, three or four modules give 10.24, 15.36 or 20.48 kWh with 5 kW output.

Key applications

• Homes and apartments
• Small businesses
• Solar backup systems

Enquire about this product

Full technical specifications – GS-S10 / GS-S15 / GS-S20

Technical specifications – GS-S10 / GS-S15 / GS-S20

Model	GS-S10	GS-S15	GS-S20
Battery modules	2	3	4
Module	51.2 V / 100 Ah, 5.12 kWh, 2.56 kW, 5000 cycles
Capacity	51.2 V / 200 Ah	51.2 V / 300 Ah	51.2 V / 400 Ah
Energy	10.24 kWh	15.36 kWh	20.48 kWh
Power	5 kW (100 A rated, 200 A max)
Communication	CAN / RS485 / RS232
Display	Touch screen
Dimensions	720 × 420 × 620 mm	720 × 420 × 800 mm	720 × 420 × 980 mm
Weight	90 kg	130 kg	170 kg
Ingress protection	IP20
Cooling	Natural
Installation	Floor-standing

Swipe the table sideways to see all models

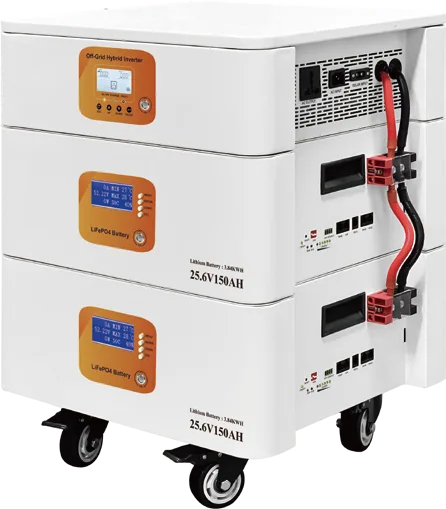

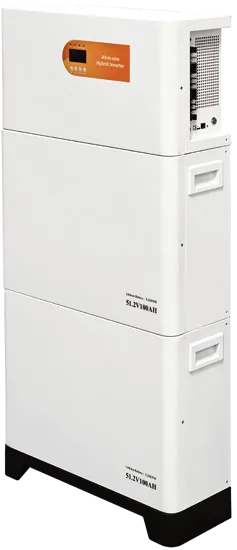

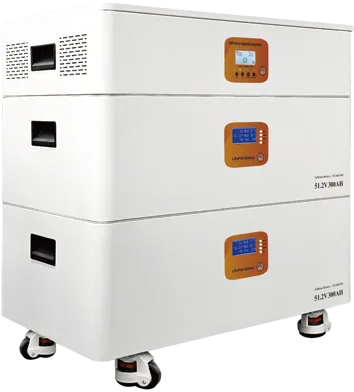

GS-A3.6 / GS-A6 / GS-A12

All-in-One Stacked Solar Storage Systems (Inverter + Battery)

Models: GS-A3.6 · GS-A6 · GS-A12

3.6 – 12 kW, up to 61.44 kWh

Overview

Stacked systems that combine an off-grid hybrid inverter with LiFePO4 battery modules in one column. Capacity grows by adding modules, from 3.84 kWh (GS-A3.6) up to 61.44 kWh (GS-A12).

Key applications

• Homes and apartments
• Shops and small offices
• Off-grid and backup power during load-shedding

Enquire about this product

Full technical specifications – GS-A3.6 / GS-A6 / GS-A12

Technical specifications – GS-A3.6 / GS-A6 / GS-A12

Model	GS-A3.6	GS-A6	GS-A12
Inverter
Rated power	3.6 kVA / 3.6 kW	6 kW	12 kVA / 12 kW
PV input	5000 W max, 500 VDC, MPPT 60 – 500 V	–	2 × 5000 W, 500 VDC max, MPPT 60 – 500 V
Charge current	100 A	–	160 A PV / 120 A AC
AC output	220/230 VAC	–	220/230 VAC, 50/60 Hz, pure sine
Grid connection	Off-grid only	–	Not supported (off-grid)
Parallel	–	–	Up to 6
Battery
Battery voltage	25.6 V (8S)	40 – 58.4 V	51.2 V
Module capacity	150 / 300 / 450 / 600 Ah	100 Ah / 100 Ah × 2 (1P16S)	300 / 600 / 900 / 1200 Ah
System energy	3840 / 7680 / 11520 / 15360 Wh	5120 / 10240 Wh	15360 / 30720 / 46080 / 61440 Wh
Battery current	100 A / 150 A	100 A max	100 A charge / 200 A discharge
Cycle life	–	6000 @ ≥ 90% DoD; 10,000 @ ≥ 80% DoD	6000 @ ≥ 90% DoD
Ingress protection	IP22	IP21	IP21
Communication	–	RS485, CAN, RS232	RS232 / RS485 / CAN
Mechanical
Dimensions	Battery 450 × 420 × 180 (middle) / 450 × 420 × 260 (bottom); inverter 450 × 420 × 150 mm	Inverter 600 × 318 × 210; battery 600 × 430 × 210 mm	Battery 750 × 450 × 260 (middle) / 750 × 450 × 350 (bottom); inverter 750 × 450 × 180 mm
Weight	Battery 33 / 35 kg; inverter 12.3 kg	68.6 / 120.4 kg net	Battery 105.5 / 110 kg; inverter 25.3 kg

Swipe the table sideways to see all models

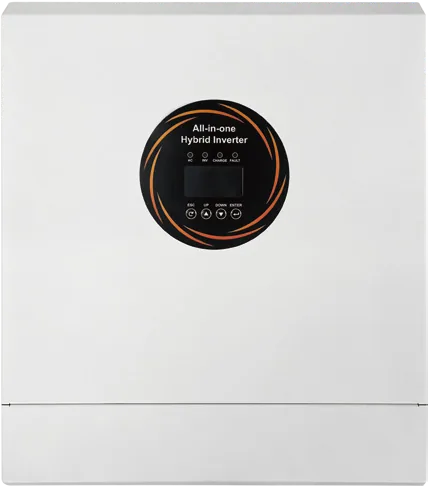

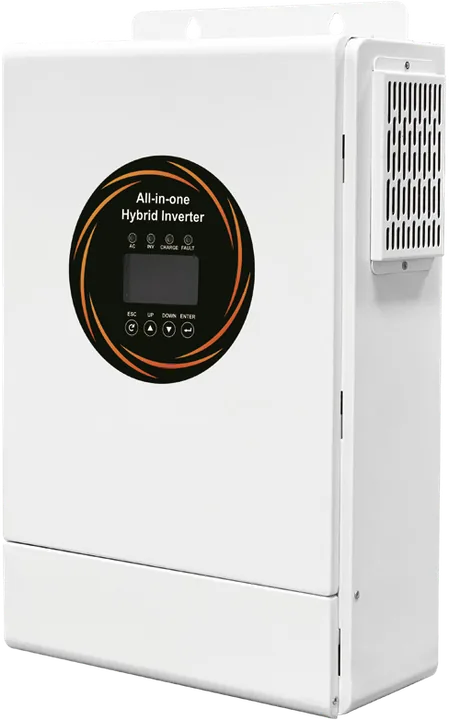

GS-HI3.6 / GS-HI6P / GS-HI12

Hybrid Solar Inverters, 3.6 – 12 kW

Models: GS-HI3.6 · GS-HI6P · GS-HI12

3.6 – 12 kW

Overview

Wall-mounted hybrid inverters with built-in MPPT solar chargers and pure sine wave output. GS-HI3.6 runs on 24 V batteries; GS-HI6P and GS-HI12 run on 48 V. GS-HI6P supports optional on/off-grid operation and up to six units in parallel.

Key applications

• Home solar and backup systems
• Shops and small offices
• Pairing with GS-W and GS-S batteries

Enquire about this product

Full technical specifications – GS-HI3.6 / GS-HI6P / GS-HI12

Technical specifications – GS-HI3.6 / GS-HI6P / GS-HI12

Model	GS-HI3.6	GS-HI6P	GS-HI12
General
Operating mode	Off-grid	On/off-grid (optional)	Off-grid
Rated power	3.6 kVA / 3.6 kW	6000 W (peak 12,400 VA)	12 kVA / 12 kW (2nd output 6 kW)
Battery voltage	24 VDC	48 VDC	48 V nominal
PV input
Max PV power	5000 W	6000 W	2 × 7500 W
Max PV voltage	500 VDC	–	500 VDC
MPPT range	60 – 500 V	120 – 500 V	60 – 500 V
PV current	18 A	20 A	2 × 22.5 A
Max charge current	100 A	120 A (100 A AC)	160 A PV / 120 A AC
Max discharge current	–	–	220 A
AC output & interface
AC output	220/230 VAC	220/230/240 VAC ± 5%, 50/60 Hz	220 – 240 VAC, 50/60 Hz, pure sine; surge 22,000 VA
Efficiency	96% / 93%	> 94%	96% PV–INV; 93% battery–INV
Transfer time	–	–	10 / 20 ms
Parallel	No	Yes, up to 6	No
Communication	–	BMS / RS232 / RS485 / CAN / USB / dry contact	RS232 / RS485 / dry contact; Wi-Fi optional
Ingress protection	IP21	–	IP21
Dimensions	456 × 299 × 111 mm	536 × 352 × 135 mm	–
Weight	5.5 kg	10.5 kg	14.5 kg
Altitude	–	≤ 1000 m	–

Swipe the table sideways to see all models

Model names are GREEN & STRONG catalogue designations. Specifications are subject to change without notice; please confirm the final configuration with us when ordering. Product images are for reference only.
