High-Power Energy Storage Batteries

High-voltage liquid-cooled battery packs for system integration, large 51.2 V mobile battery packs and 48 V rack batteries.

In this section

GS-HV52L52 kWh Liquid-Cooled Battery Pack (1P52S)
GS-HV104L104 kWh Liquid-Cooled Battery Pack (1P104S)
GS-LV Series51.2 V Movable Battery Packs, 15 – 32 kWh
GS-RK4.848 V 100 Ah Server-Rack LFP Battery (4.8 kWh)

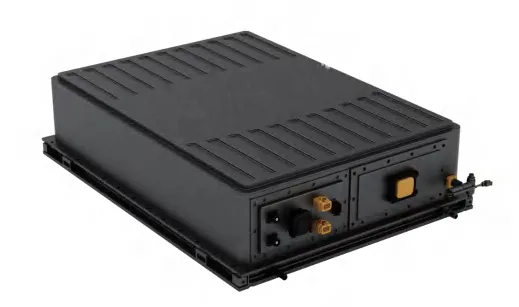

GS-HV52L

52 kWh Liquid-Cooled Battery Pack (1P52S)

52 kWh166.4 V

Overview

A 52 kWh high-voltage battery pack with plate liquid cooling, built from 52 LFP 314 Ah cells in series. It is the standard building block for C&I cabinets and utility containers, with a manual service disconnect (MSD), quick-plug connections and CCS cell sampling.

Key applications

Building block for C&I cabinets
Utility battery containers and racks
System integrators and OEMs

Enquire about this product

Full technical specifications – GS-HV52L

Technical specifications – GS-HV52L
Parameter	GS-HV52L
Electrical
Cell type	LFP 3.2 V / 314 Ah
Configuration	1P52S
Rated energy	52.249 kWh
Rated voltage	166.4 V
Voltage range	145.6 – 187.2 V
C-rate	≤ 0.5P
Cycle life	8000 (≥ 70% EOL, 25 °C, 0.5P)
Thermal & environment
Thermal management	Plate liquid cooling
Discharge temperature	-20 to 55 °C
Charge temperature	0 to 55 °C
Storage temperature	-30 to 60 °C
Mechanical
Dimensions	1127 × 811 × 244 mm
Weight	Approx. 350 kg
Features	MSD with fast break, quick-plug connectors, CCS sampling

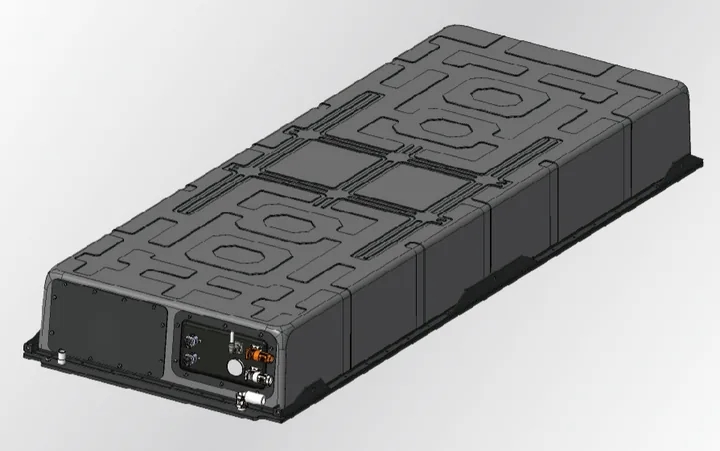

GS-HV104L

104 kWh Liquid-Cooled Battery Pack (1P104S)

104.49 kWh322.8 V

Overview

A double-length liquid-cooled pack with 104 LFP 314 Ah cells in series, delivering 104.49 kWh per pack. Designed as a high-energy building block for utility battery containers.

Key applications

Utility container building block
High-voltage battery racks
System integrators and OEMs

Enquire about this product

HV pack comparison

HV pack comparison
Model	GS-HV52L	GS-HV104L
Configuration	1P52S	1P104S
Cell capacity	314 Ah	314 Ah
Rated energy	52.249 kWh	104.49 kWh
Rated voltage	166.4 V	322.8 V
Voltage range	145.6 – 187.2 V	291.2 – 374.4 V
Cooling	Liquid cooling	Liquid cooling
C-rate	0.5P (max 0.5P)	0.5P (max 0.5P)
Typical use	C&I cabinets, utility containers	Utility container building block

Full technical specifications – GS-HV104L

Technical specifications – GS-HV104L
Parameter	GS-HV104L
Cell type	LFP, 314 Ah
Configuration	1P104S
Rated energy	104.49 kWh
Rated voltage	322.8 V
Voltage range	291.2 – 374.4 V
Cooling	Liquid cooling
C-rate	0.5P (max 0.5P)

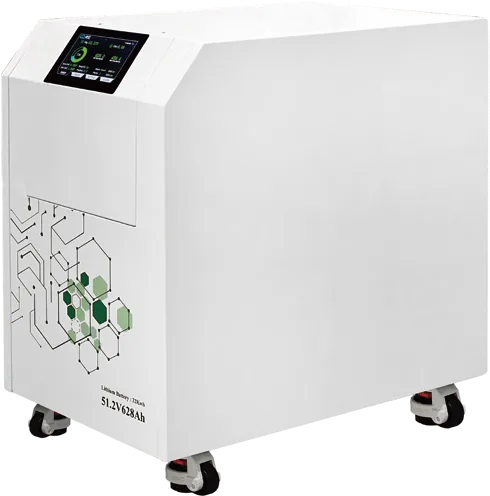

GS-LV Series

51.2 V Movable Battery Packs, 15 – 32 kWh

Models: GS-LV15 · GS-LV18 · GS-LV26 · GS-LV32

51.2 V15 – 32 kWh

Overview

Large 51.2 V LiFePO4 battery packs on castor wheels, from 15 kWh to 32 kWh. With 200 A discharge and 10 kW rated power they pair with 48 V inverters for backup power in large homes, small businesses and telecom sites.

Key applications

Large homes and small businesses
Telecom and network backup
48 V inverter systems and load-shedding backup

Enquire about this product

Full technical specifications – GS-LV Series

Technical specifications – GS-LV Series
Model	GS-LV15	GS-LV18	GS-LV26	GS-LV32
Electrical
Capacity	300 Ah	346 Ah	519 Ah	628 Ah
Nominal energy	15,000 Wh	18,000 Wh	26,000 Wh	32,000 Wh
Nominal voltage	51.2 V
Max charge current	150 A
Max discharge current	200 A
Rated power	10,000 W
Charge / discharge cut-off	–	–	–	58.4 V / 44 V
Cycle life	–	–	Up to 10,000 cycles	6000 @ ≥ 90% DoD; 10,000 @ ≥ 80% DoD
Design life	–	–	15 years	–
Interface & general
Communication	RS485 / RS232 / CAN
Parallel	Up to 6	Up to 6	Up to 6	–
Display	Touch LCD	Touch LCD	Touch LCD	–
Ingress protection	IP22
Operating temperature	–	–	–	Charge 0 to 55 °C; discharge -20 to 55 °C
Altitude	–	–	–	≤ 4000 m
Dimensions	–	–	–	740 × 445 × 745 mm
Weight	129 kg	163 kg	175 kg	210 kg net / 238.5 kg gross

Swipe the table sideways to see all models

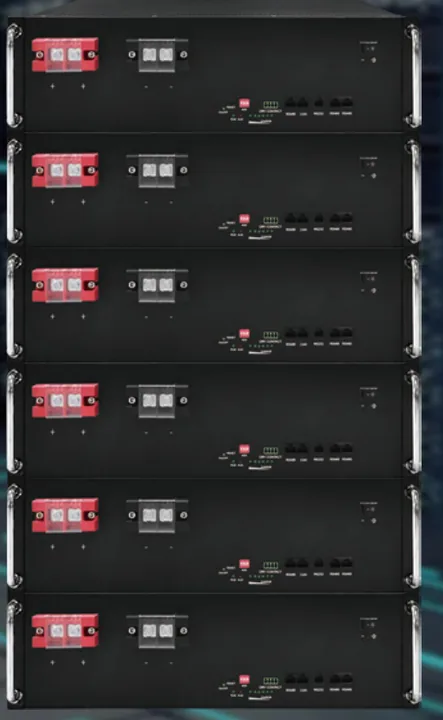

GS-RK4.8

48 V 100 Ah Server-Rack LFP Battery (4.8 kWh)

48 V / 100 Ah

Overview

A rack-mounted battery module with prismatic LFP cells and an integrated 100 A BMS. Up to 16 modules can be connected in parallel for telecom base stations, server rooms and 48 V residential systems.

Key applications

Telecom base stations
Server and network racks
48 V residential and solar systems

Enquire about this product

Full technical specifications – GS-RK4.8

Technical specifications – GS-RK4.8
Parameter	GS-RK4.8
Electrical
Nominal voltage / capacity	48 V / 100 Ah
Energy	4.8 kWh
Cell	Prismatic LFP 100 Ah, 15S1P
Internal resistance	≤ 50 mΩ
Self-discharge	≤ 3% per month
Charge	50 A standard / 100 A max, CC-CV, cut-off 54.75 V
Discharge	50 A standard / 100 A max, cut-off 39 V
BMS	100 A continuous, over-current protection 110 A / 30 ms
Parallel	Up to 16
Life & general
Cycle life	> 10,000 (1C, 50% DoD, 25 °C)
Calendar life	> 10 years
Operating temperature	-20 to 60 °C
Communication	RS485, CAN, RS232
Ingress protection	IP20
Dimensions	480 × 476 × 133.5 mm (packed 510 × 505 × 295 mm)

Model names are GREEN & STRONG catalogue designations. Specifications are subject to change without notice; please confirm the final configuration with us when ordering. Product images are for reference only.
