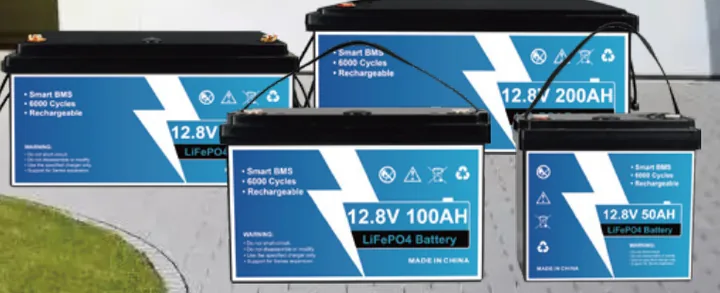

GS-LFP12 Series
12.8 V LiFePO4 Batteries, 50 – 200 Ah
Models: GS-LFP12-50 · GS-LFP12-100 · GS-LFP12-150 · GS-LFP12-200
12.8 V50 – 200 Ah
Overview
Drop-in 12.8 V LiFePO4 replacements for lead-acid batteries, with built-in smart BMS, iron casing and IP55 protection. Rated for 6000 cycles, they suit IPS units, solar home systems and light electric vehicles.
Key applications
- IPS / UPS home backup
- Solar home systems
- E-rickshaws, e-bikes and golf carts
- Lighting and small off-grid loads
Full technical specifications – GS-LFP12 Series
| Model | GS-LFP12-50 | GS-LFP12-100 | GS-LFP12-150 | GS-LFP12-200 |
|---|---|---|---|---|
| Nominal voltage | 12.8 V | |||
| Capacity (0.5C) | 50 Ah | 100 Ah | 150 Ah | 200 Ah |
| Energy | 640 Wh | 1280 Wh | 1920 Wh | 2560 Wh |
| Cycle life | 6000 (0.5C, to 80%) | |||
| Charge voltage | 14.0 – 14.6 V | |||
| Standard charge current | 10 A | 20 A | 30 A | 40 A |
| Max charge current | 25 A | 50 A | 75 A | 100 A |
| Discharge current | 50 A | 100 A | 150 A | 200 A |
| Discharge cut-off | 10.0 V | |||
| Temperature | Charge 0 to 45 °C; discharge -20 to 60 °C | |||
| Ingress protection | IP55 | |||
| Casing | Iron | |||
| Dimensions | 230 × 145 × 210 mm | 340 × 185 × 220 mm | 505 × 185 × 240 mm | 525 × 240 × 220 mm |
| Weight | ~4.5 kg | 13.15 kg | 16.2 kg | 26.8 kg |
